The 645DF+ Camera Body

The Phase One 645DF+ camera is a versatile camera platform for high-end Medium Format photography. This camera offers you unparalleled control, performance, precision and reliability and lets you focus on creativity.

Scroll down to learn more or click below.

645DF+_110mm_low

Key Features Tech Specs Images Video Buy Now Leasing Request more information

Simplicity of Operation.

The mirror and viewfinder of the Phase One 645DF+ camera are almost three times larger than those of 35mm cameras, providing much greater control of focus and composition.

While boasting a complete list of features and custom functions, the Phase One 645DF+ camera is extremely easy to use. All settings important to the exposure are easily controlled by manual dials and soft buttons.

Add an optional V-Grip Air for vertical shooting and enjoy a built-in wireless flash trigger for the Profoto Air system. The V-Grip Air also easily integrates with other flash systems using a Profoto Tranceiver for 1/1600s sync speed.

DF+ Benefits At A Glance

  • Fast and accurate autofocus
  • Autofocus fine-tuning
  • Shutter speed from 1/4000th sec to 60 minutes
  • Leaf Shutter syncs with flash up to 1/1600th sec
  • Rechargeable Li-Ion battery, up to 10k capture capacity
  • Automatic switch from Focal Plane to Leaf Shutter modes
  • Easily programmable custom functions
  • Intuitive handling, ergonomics and controls
  • Rugged construction for high volume production use
  • Broad lens and accessory for excellent expandability

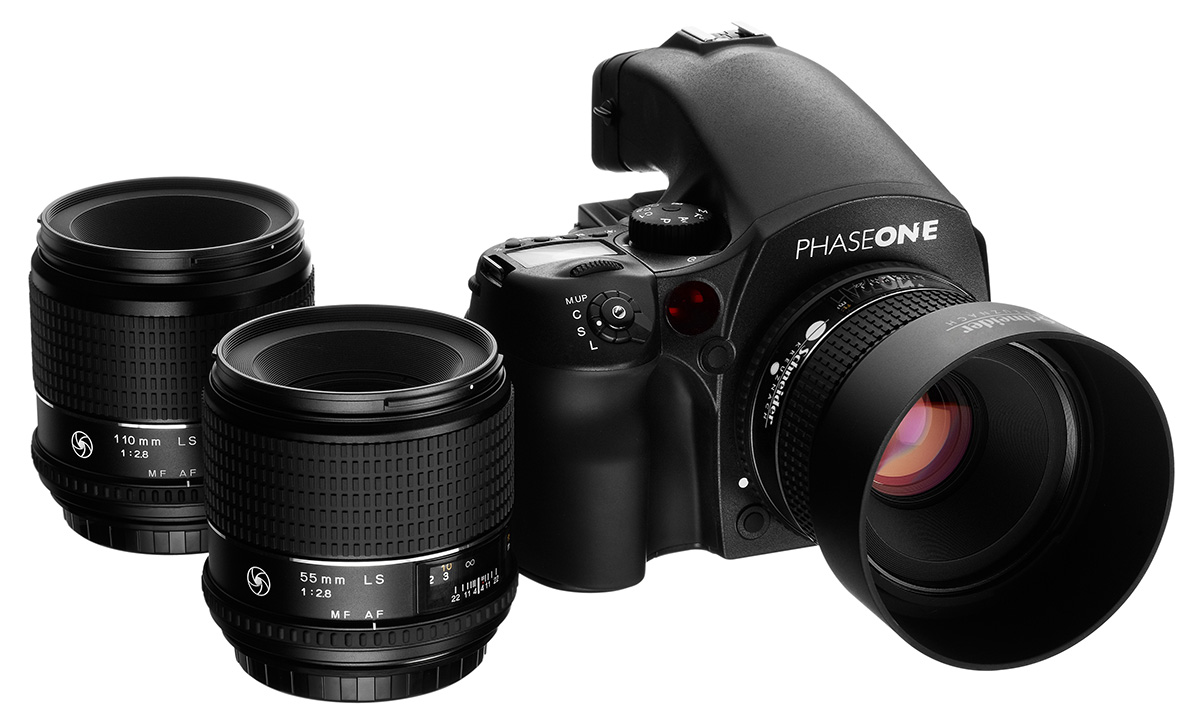

DF-LS_family_white_low

Tech Specs

Lenses Phase One Digital focal plane lenses
Schneider Kreuznach leaf shutter lenses
Mamiya 645 AFD lenses
Compatible with Hasselblad V and Pentacon 6 (via multimount adaptor)
Flash Focal plane shutter: Up to 1/125s
Leaf shutter lenses: Up to 1/1600s*
1st and 2nd curtain flash synchronization
X sync terminal and support for TTL flash
Auto Focus TTL phase-difference AF with 3 focus points
Focus confirmation in manual mode
Infrared AF assists for unfailing focus
Auto focus lock for swift AF/ M shift
Light Metering TTL metering (average, spot and auto)
Programmable AEL button
Exposure compensation: +/- 5EV
Shutter 1/4000s to 60 minutes
Up to 120 frames per minute
Viewfinder Fixed prism viewfinder
Exchangeable diopter from -5 to +3
LCD panel with full exposure information
Focusing Screen Interchangeable focus screens
Laser engraved mask for digital back
Remote Screw-in cable release on shutter button
Terminal for electronic triggering devices
User Configuration 3 custom dial modes for capture settings
36 custom settings
Customizable dials and buttons
Power Requirements Rechargeable Li-ion battery or
6 AA batteries (alkaline or rechargeable)
Size 6 x 5 x 7.2 in (W x H x D)
Weight (35 oz) without batteries
Backs Open platform digital back mount
Resolution The resolution and many other capture features depends on the digital back mounted

Product Images
